Full Product Description

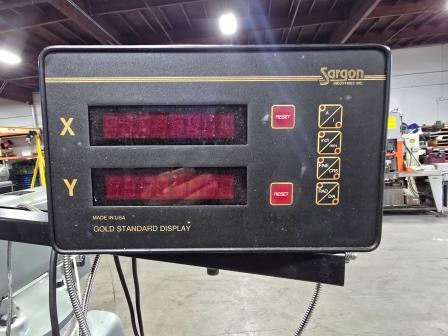

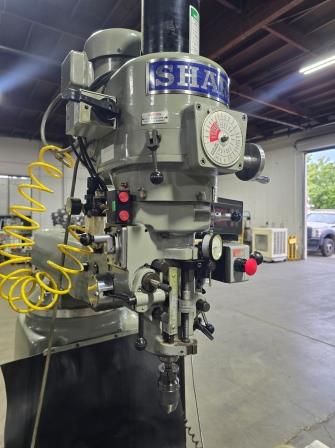

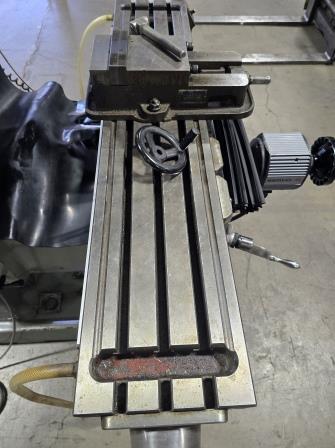

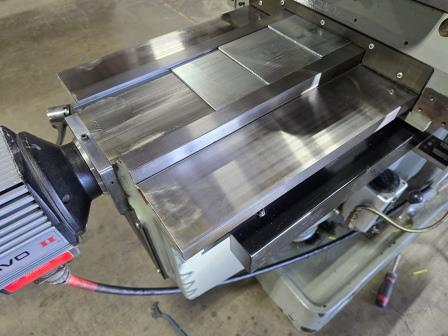

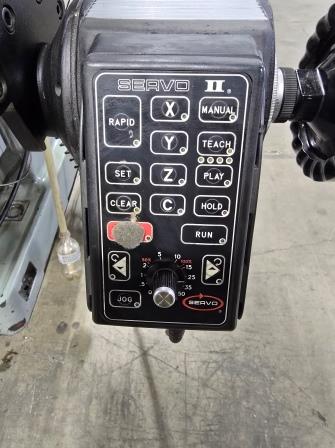

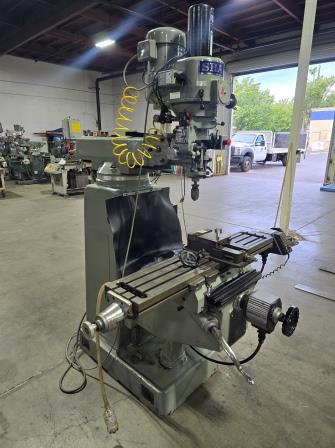

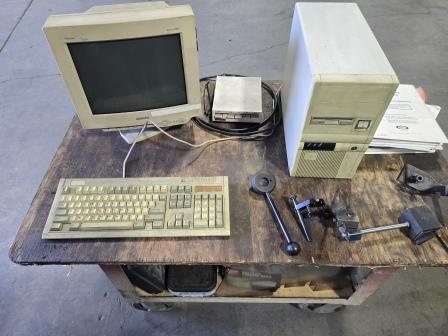

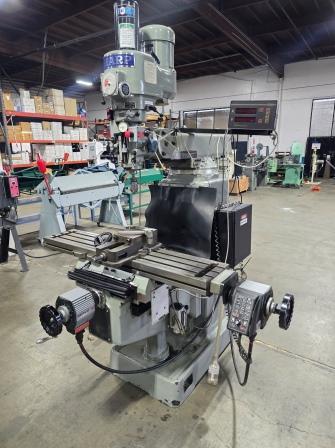

MODEL: SHARP TMV TABLE: Working surface: 10" x 50" T-slot number, size: (3), 5/8" CAPACITY: Table travel; x-axis: 32" Saddle travel; y-axis: 16" Ram travel: 18" Quill travel; z-axis: 5" Knee travel: 15" SPINDLE: Motor: 3 HP Wiring voltage: 230 Volt, 3 Phase, 60 Hz Taper: R8 Speed (Vari-speed): 60 to 4500 RPM Quill feed (IPR): 0.0015, 0.003, 0.006" Head swivel: 360-Degrees Head tilt; right-to-left (each way): 45-Degrees Head tilt up-and-down (each way): 45-Degrees DIMENSIONS and WEIGHT: Floor area (w x d): 9.83 x 6.25 x 7.64'H Net weight: 3,000 Lbs. EQUIPPED WITH: * POWERFEED ON X-AXIS * ONE SHOT LUBE * 2-AXIS DIGITAL READOUT * ALSO EQUIPPED WITH COMPUTER - OLDER STYLE BUT CAN BE RUN AS MANUAL MILL WITH D.R.O. FEATURES * Genuine Meehanite castings. * A pair of high-output fans keep the LMV's powerful 3 h.p. head cool allowing the LMV to work demanding jobs for extended periods without damaging the motor, belts or bearings. * Spindle runout of no more than 0.0002" T.I.R. A tolerance unsurpassed in the industry. * The motor shaft * The motor shaft end VariDrive pulleys are dynamically balances, then hard-chromed. * Chrome-plated, self-lubricating motor shaft has an oil channel that's fed by a grease fitting on the lower end. * Roller bearing for the lower support of the motor shaft. * Table and saddle backlash is controlled by a unique double- nut design. * Table and saddle are mounted with thrust bearings that pre- load the feed screw. IMPORTANT CONDITIONS OF THIS QUOTATION: All relevant facts about the above machinery are believed to be accurate, but none are guaranteed. It is the sole responsibility of the buyer to verify all aspects of the machine tool, descriptions, specifications, condition, and suitability of the intended usage. All machines are quoted subject to prior sale, availability, and buyer verification of specifications. Typographical and clerical errors are subject to correction. Thank you for giving us the opportunity to quote your machinery needs.
