Full Product Description

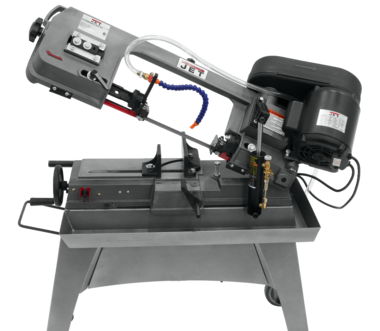

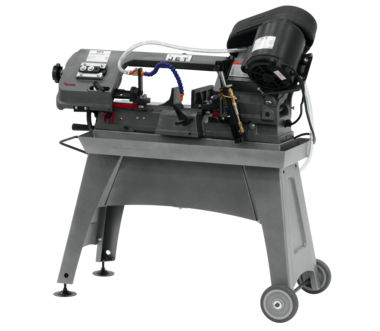

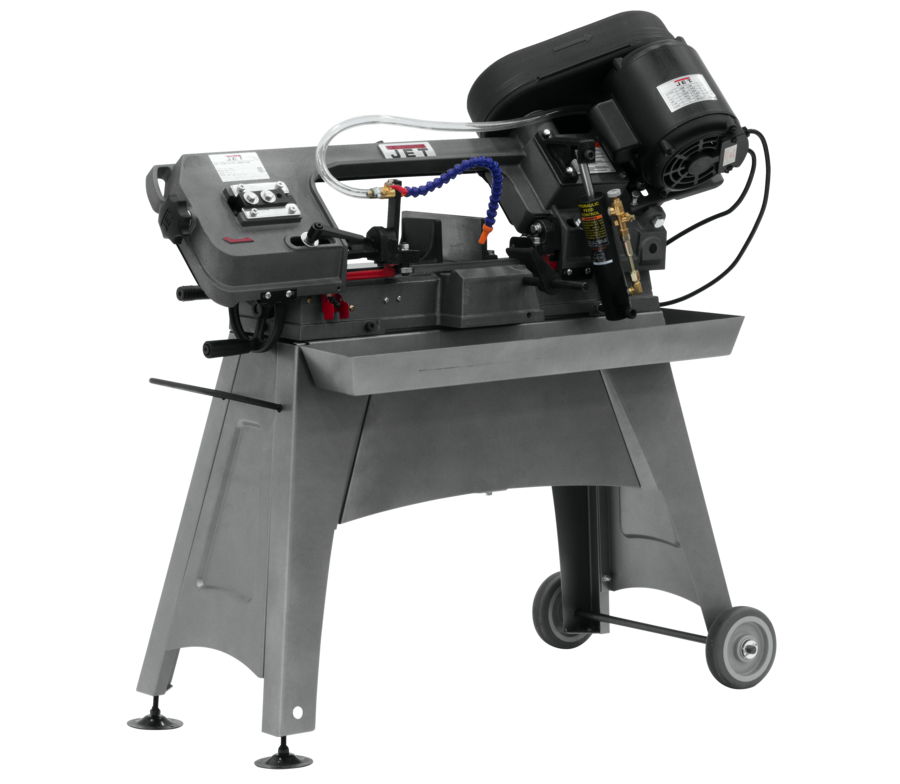

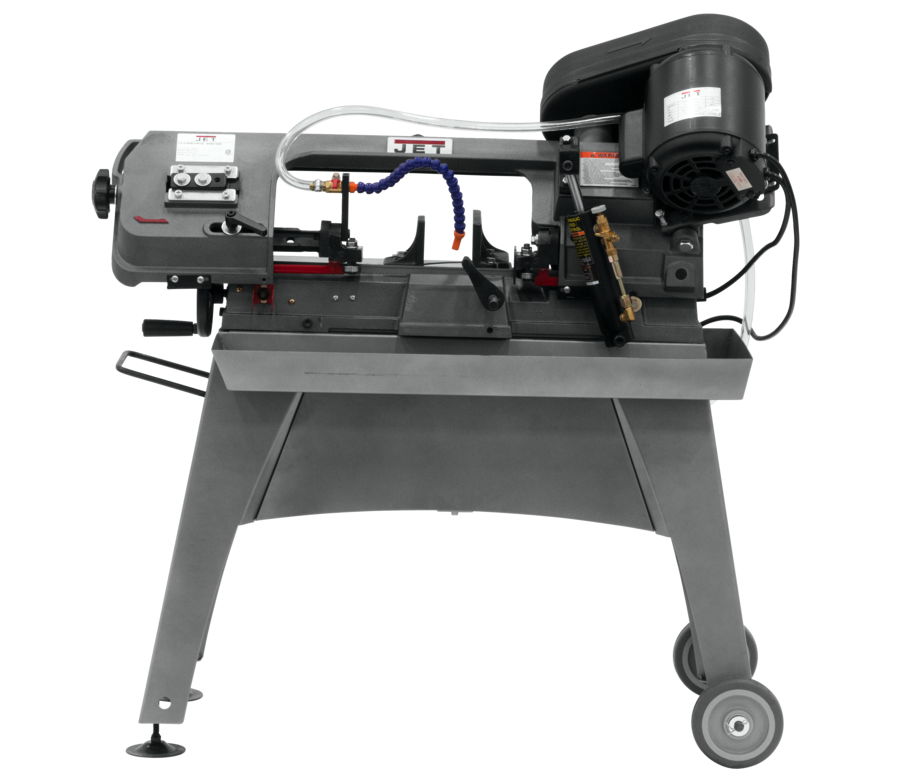

Model: J-3230 Stock Number: 414453 Motor: 1/2 HP, 115V 1 Ph, 1725 RPM Round at 90 Degrees (in.): 5 Round at 45 Degrees (in.): 4-1/2 Rectangle at 90 Degrees (in.): 7-1/2 X 5 Square at 90 Degrees (in.): 5 Blade Size (in.): 1/2 X .025 X 68-1/2 Blade Speeds (SFPM): 85, 125, 200 Bed Height (in.): 23-1/2 Blade Length (in.): 68-1/2 Rectangle at 45 (in.): 4-1/2 X 5 Base/ 3 Legs Area Required (in.): 37 x 16 x 37 Overall Dimensions: 37 X 16 X 37 Height: 0 inch Width: 0 inch Length: 0 inch Net Weight: 160 pound FEATURES: * Adjustable hydraulic feed system * Adjustable ball bearing guides * Heat treated steel worm gear and bronze driver gear * Automatic shut off at end of cut * Handles and wheels for convenient moving to various work stations * Eccentric shaft and ball bearing guides STANDARD EQUIPMENT: * 1 gallon capacity coolant system with hose, flexible nozzle, shut off valve, tank and baffle * 1/2" Carbon steel blade *Adjustable material stop 2-YEAR FACTORY WARRANTY INCLUDED!!
